STORION-M50
50 kW
108.4 ~ 217.0 kWh
Outdoor & Indoor
-

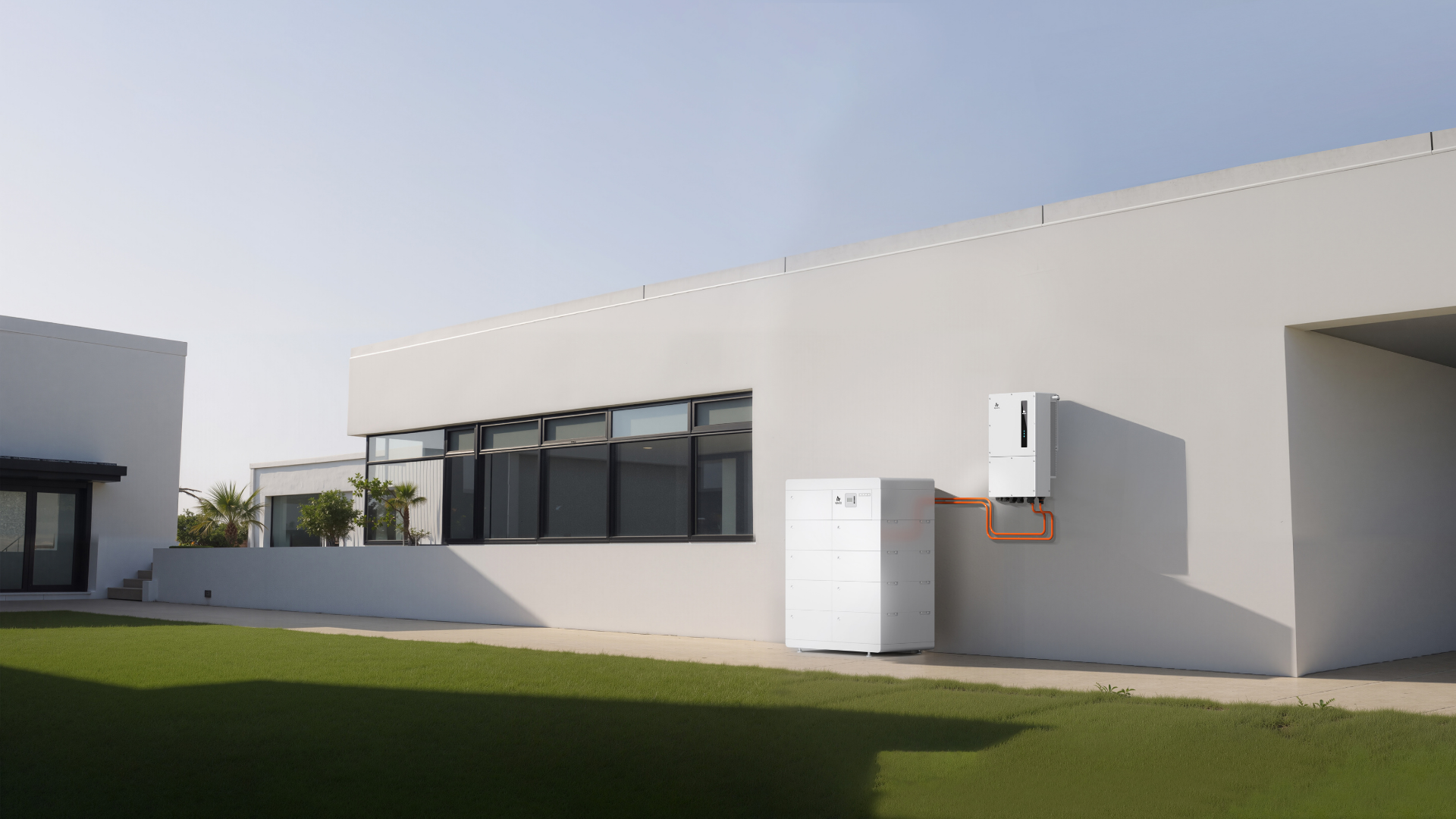

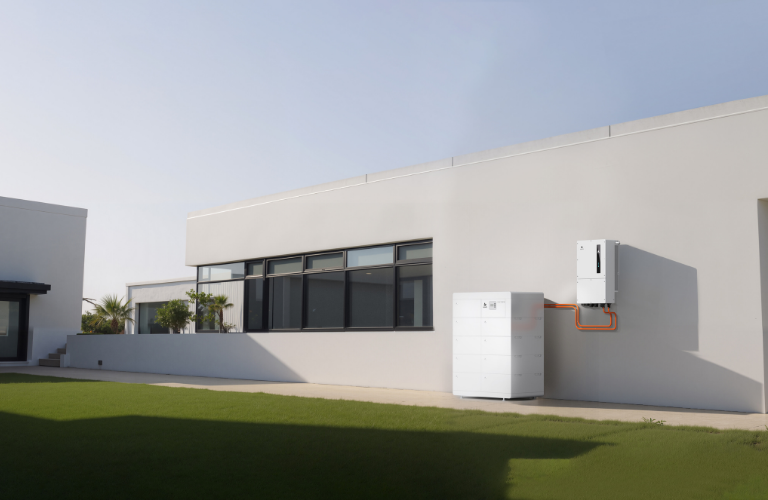

Powered by the World's first Stackable Battery and Unique BMS functionality, the M50 series gives users stability and more possibilities to handle varied needs. The modular design can easily fit into different site requirements with a simple stack and start installation.
FEATURES
-
Stackable Design for Quick Setup & Expansion
-
IP66 Protection
-
200% PV Input
-
Reliable Operation with AutoPilot BMS Tech
-
Boost Lifetime by Auto-diagnostics & SOC Calibration
SPECS
System Specifications
Model
STORION-M50
Rated Power
50 kW
No. of MPPT Trackers
4
Protection Level
IP66
Warranty
10 Years Battery Performance Warranty
Dimensions (L x W x H)
530*880*290 mm
Battery Specifications
Module Model
Battery Type
Nominal Capacity
Rated Voltage
Operating Voltage
Max. Charging/Discharging Current
Dimensions (W x D x H)
-

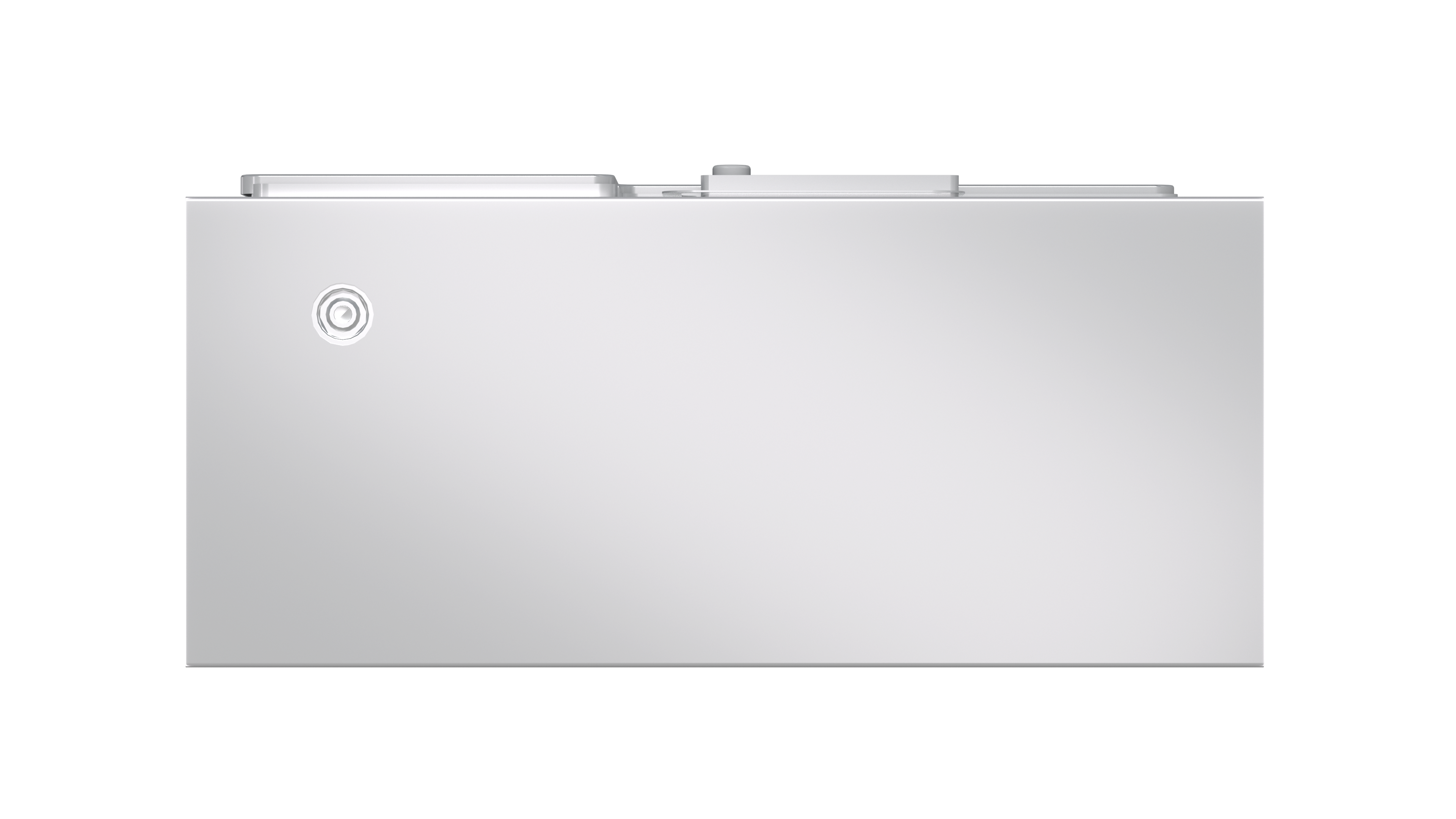

Module Model
M38314-S
Battery Type
LiFePO₄
Nominal Capacity
12.06 kWh
Rated Voltage
38.4 V
Operating Voltage
32.4 ~ 42.24V
Max. Charging/Discharging Current
157 A
Dimensions (W x D x H)
550×615×242 mm
